DESCRIPTION:
Anti-fouling and Low-Energy Brackish Water Reverse Osmosis Membrane Element
TYPICAL PROPERTIES
Product Name
SW30-4040
Application
Sea Water
Stabilized Salt Rejection (%)
99.7%
Active Area ft2 (m2)
85 (7.9) ft2 (m2)
Feed Spacer Thickness (mil)
34
Permeate Flow Rate gpd (m3/d)
1,950 GPD
SUGGESTED OPERATIONG CONDITIONS
Type
Polyamide Thin-Film Composite
Maximum Operating Pressure
1,200 psi (83 bar)
pH Range Short-Term Cleaning
1 - 13
Maximum Pressure
Drop Per Pressure Vessel
50 psig (3.5 bar)
Maximum Operating Temperature
113°F (45°C)
pH Range Continuous Operation
2 - 11
Maximum Pressure Drop Per Element
15 psig (1.0 bar)
Free Chlorine Tolerance
< 0.1 ppm

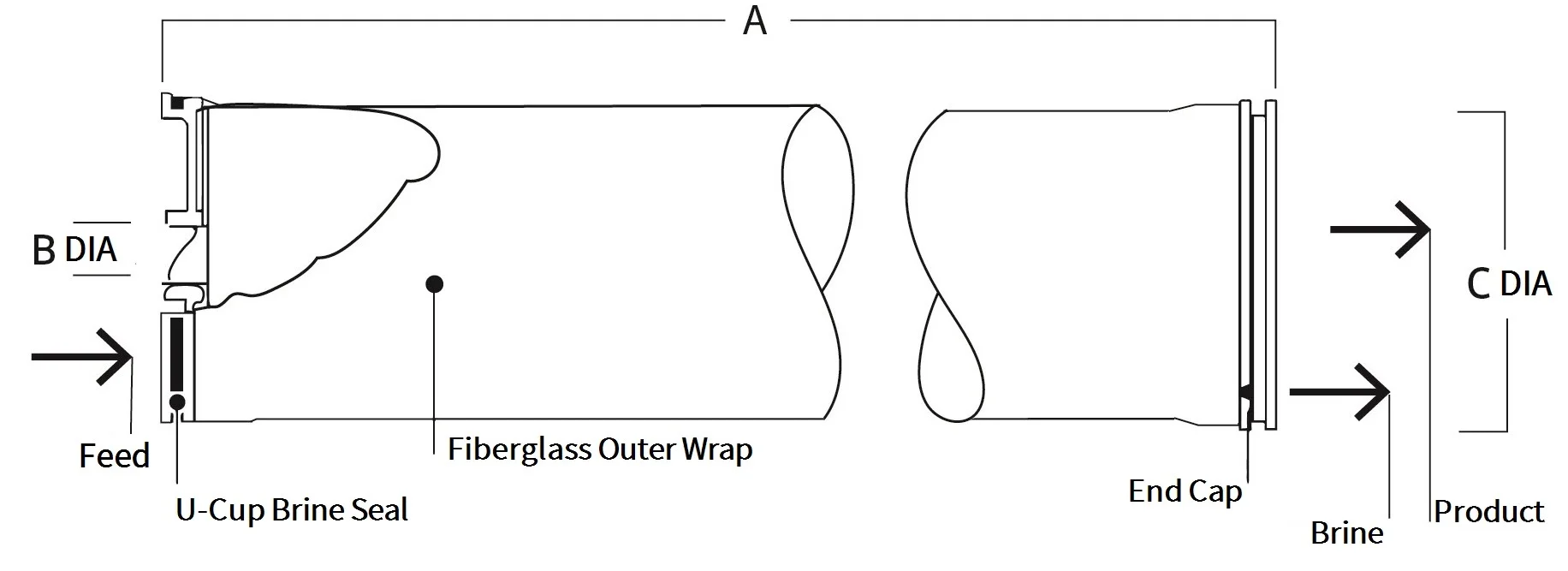

ELEMENT DIMENSIONS
Dimensions – inches (mm)
A 40.0 (1,016)
B 0.75 ID (19)
C 3.9 (99)
