FilmTec™
Seawater RO
Sea Water
2.5"x40"

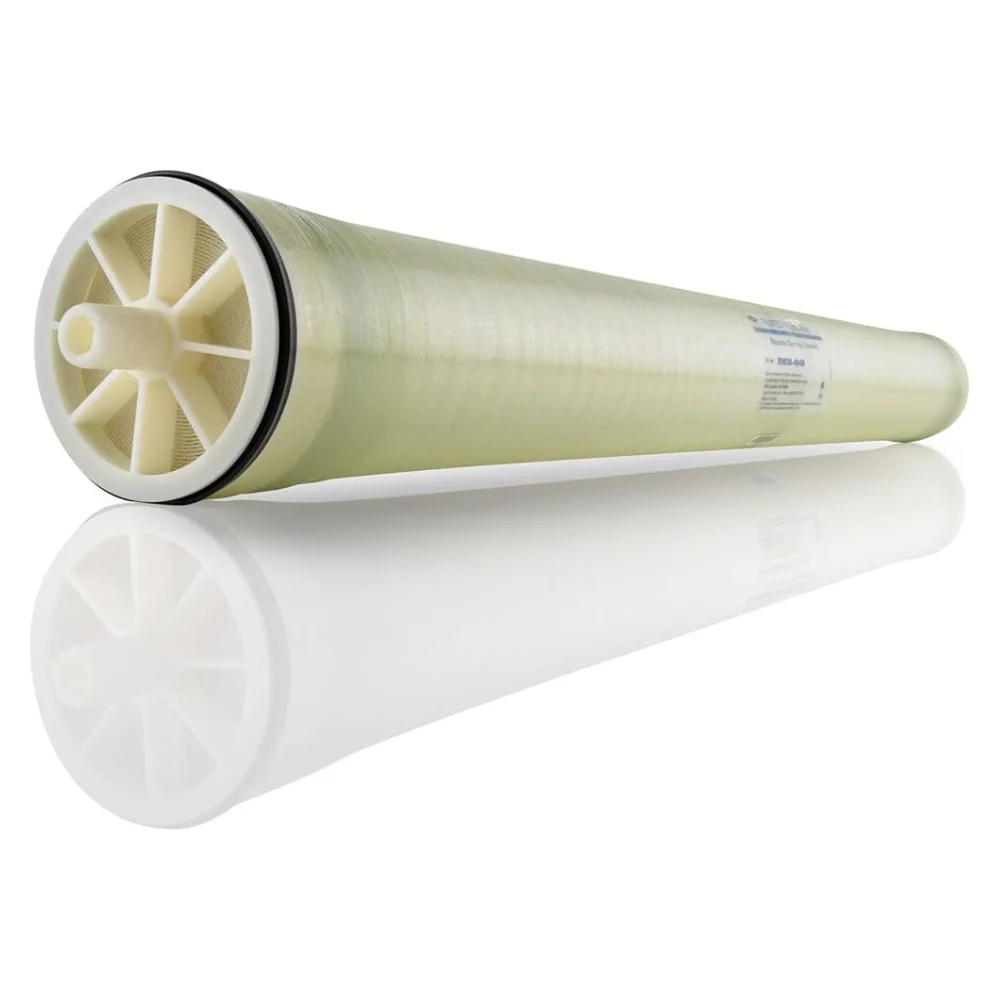

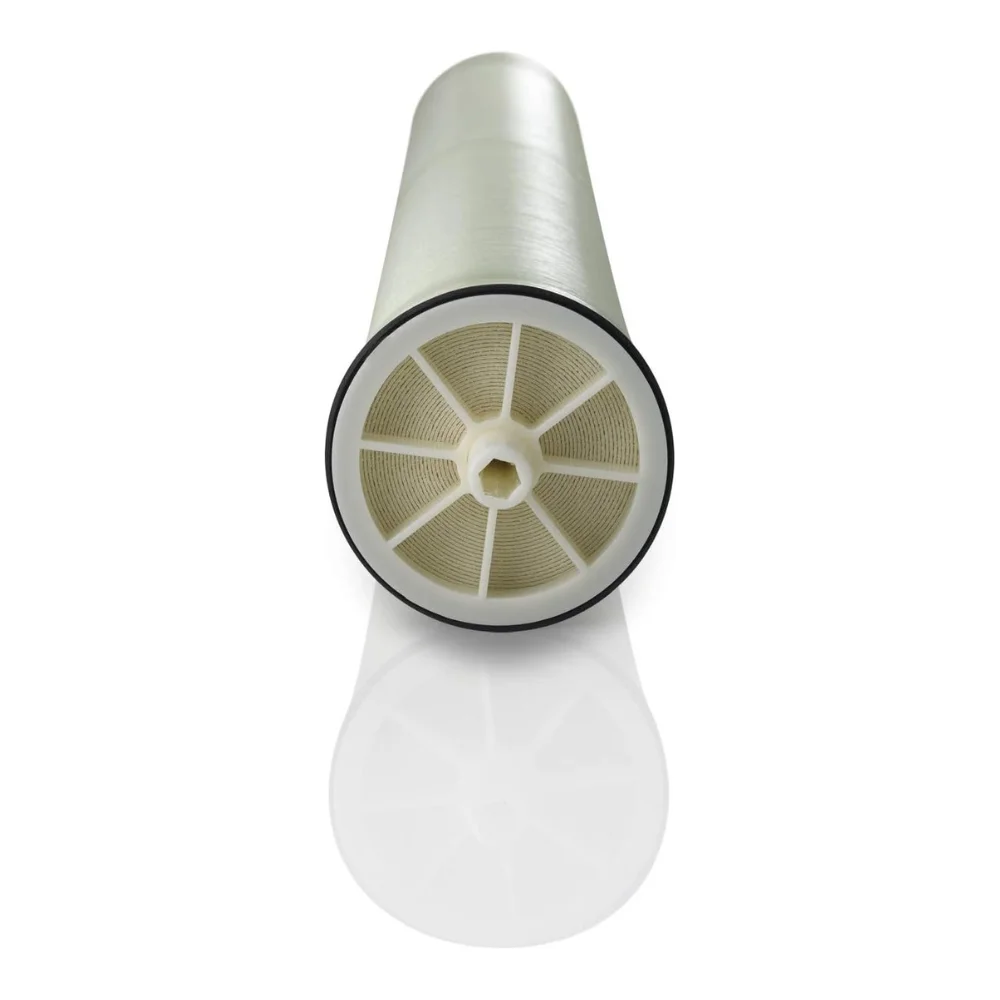

FilmTec™ SW30-2540
DuPont FilmTec™
Sea Water
99.7%
700 GPD
78 ft² (7.2 m²)
DuPont FilmTec™
FUNCTIONALITY:
Seawater RO Elements for Small Commercial Systems
TYPICAL PROPERTIES
Product Name
SW30-2540
Application
Sea Water
Stabilized Salt Rejection (%)
99.7%
Active Area ft2 (m2)
78 ft² (7.2 m²)
Feed Spacer Thickness (mil)
28
Permeate Flow Rate gpd (m3/d)
700 (2.6)
SUGGESTED OPERATIONG CONDITIONS
Type
Polyamide Thin-Film Composite
Maximum Operating Pressure
1,200 psi (83 bar)
pH Range Short-Term Cleaning
1 - 13
Maximum Pressure
Drop Per Pressure Vessel
50 psig (3.5 bar)
Maximum Operating Temperature
113°F (45°C)
pH Range Continuous Operation
2 - 11
Maximum Pressure Drop Per Element
15 psig (1.0 bar)
Free Chlorine Tolerance
< 0.1 ppm
ELEMENT DIMENSIONS
Dimensions – inches (mm)
A 40.0 (1,016)
B 0.75 ID (19)
C 2.4 (61)
