Hydranautics
Low Fouling
Sea Water
8"x40"

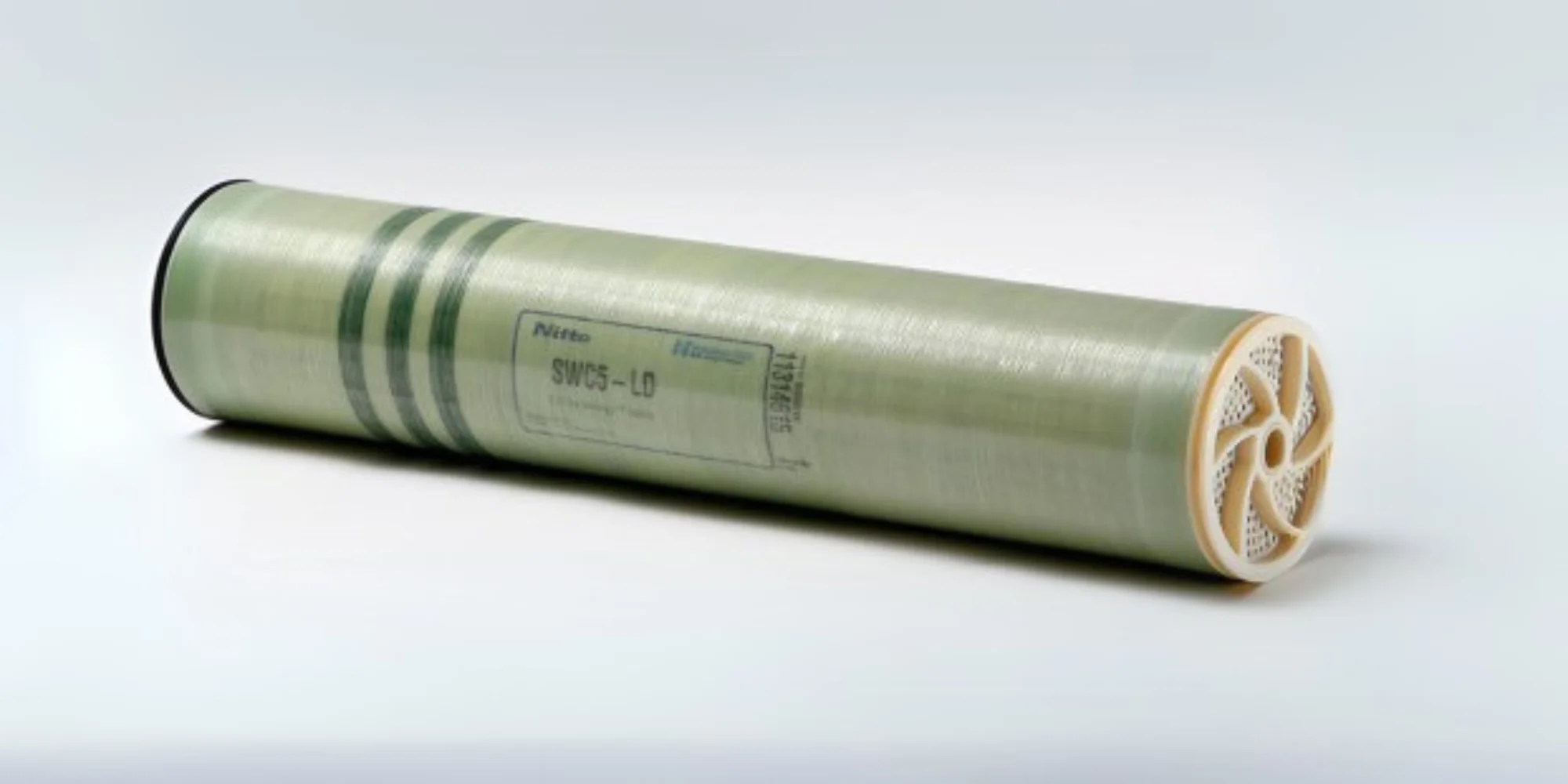

Hydranautics SWC5-LD
Hydranautics
Sea Water
99.8%
9,000 GPD
400 (37) ft² (m²)
Hydranautics
DESCRIPTION:
Lower fouling for maximum performance. Hydranautics has over two decades of experience in desalination and over 1.7 million cubic meters (461 million gallons per day) of seawater treated by their SWC (seawater composite) membranes. SWC seawater desalination membranes are available in high productivity 8-inch and 4-inch elements, all offering the highest levels of salt rejection and a consistently pure end product. Membrane formulations are designed to accommodate varying levels of seawater salinities worldwide with reliable field-proven performance.
TYPICAL PROPERTIES
Product Name
SWC5-LD
Application
Sea Water
Stabilized Salt Rejection (%)
99.8%
Active Area ft2 (m2)
400 (37) ft² (m²)
Feed Spacer Thickness (mil)
34
Permeate Flow Rate gpd (m3/d)
9,000 gpd (34.1 m3/d)
SUGGESTED OPERATIONG CONDITIONS
Type
Composite Polyamide
Maximum Operating Pressure
1,200 (8.27) psi (MPa)
pH Range Short-Term Cleaning
1–13
Maximum Pressure
Drop Per Pressure Vessel
50 (0.34)
Maximum Operating Temperature
113 (45) °F (°C)
pH Range Continuous Operation
2–11
Maximum Pressure Drop Per Element
15 (0.10)
Free Chlorine Tolerance
< 0.1 ppm
ELEMENT DIMENSIONS
Dimensions – inches (mm)
A 40 (1,016)
B 7.89 (200)
C 1.125 (29)
