Toray
Low Fouling
Brackish Water
8"x40"
TORAY TML20D-400
TORAY
Brackish Water
99.8%
10,500 GPD
400 (37) ft² (m²)
Toray
FUNCTIONALITY:
Low-Fouling Reverse Osmosis Membrane Element with High Chemical Tolerance
TYPICAL PROPERTIES
Product Name
TML20D-400
Application
Brackish Water
Stabilized Salt Rejection (%)
99.8 %
Active Area ft2 (m2)
400 (37) ft² (m²)
Feed Spacer Thickness (mil)
34
Permeate Flow Rate gpd (m3/d)
10,500 (39.7)
SUGGESTED OPERATIONG CONDITIONS
Type
Polyamide Thin-Film Composite
Maximum Operating Pressure
600 (4.1) psi (MPa)
pH Range Short-Term Cleaning
1–13
Maximum Pressure
Drop Per Pressure Vessel
50 (0.34)
Maximum Operating Temperature
113 (45) °F (°C)
pH Range Continuous Operation
2–11
Maximum Pressure Drop Per Element
15 (0.10)
Free Chlorine Tolerance
< 0.1 ppm

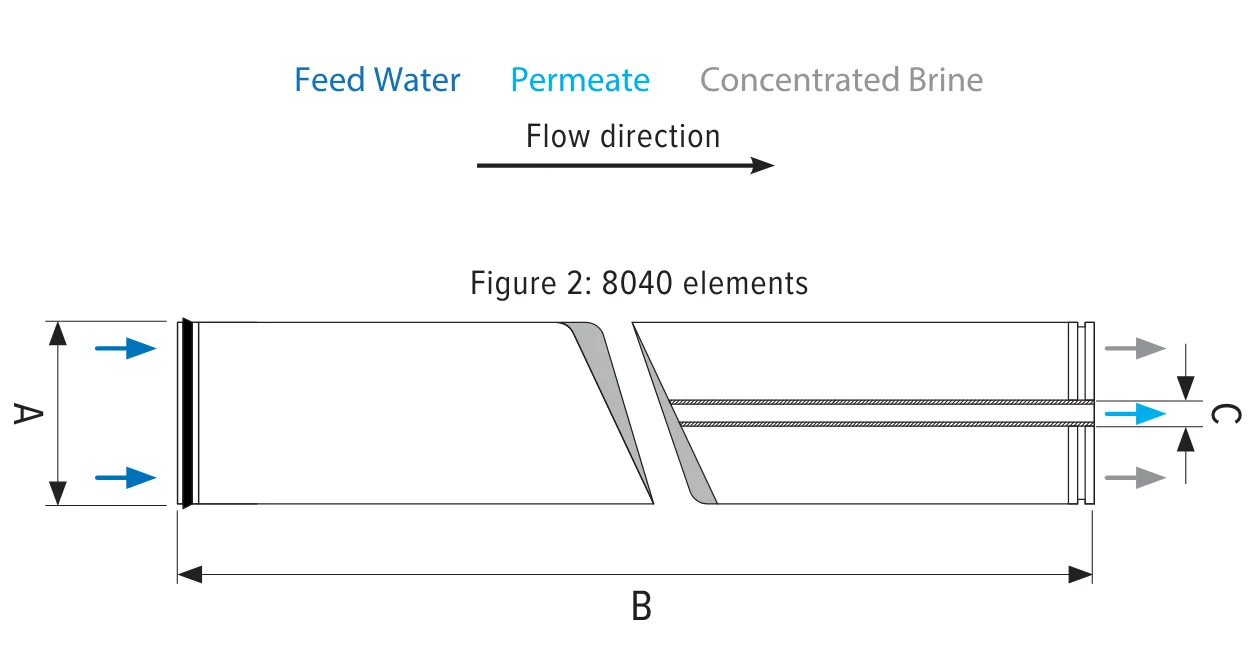

ELEMENT DIMENSIONS
Dimensions – inches (mm)
A 7.9 (201)
B 40 (1,016)
C 1.125 (29)
